Mobile 2-Post Lift- FHB3500-DC01-303059
Call For Price
Description

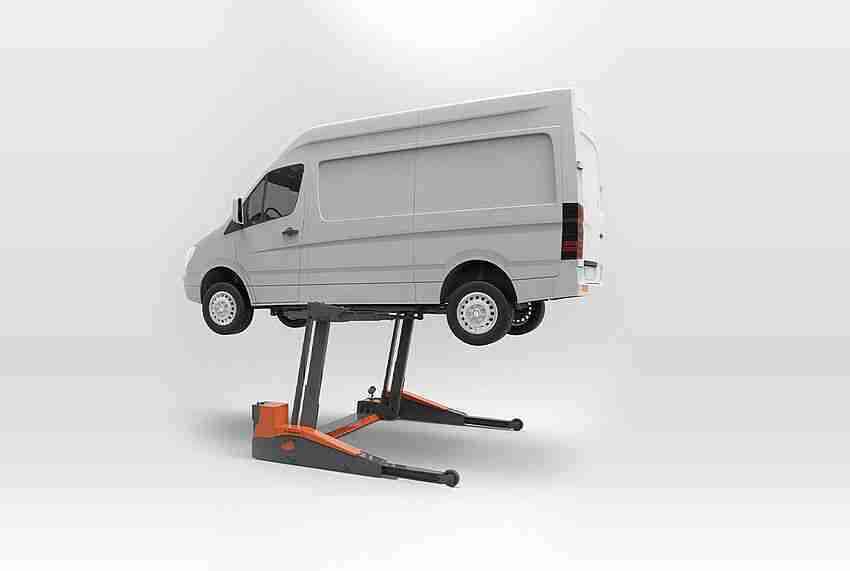

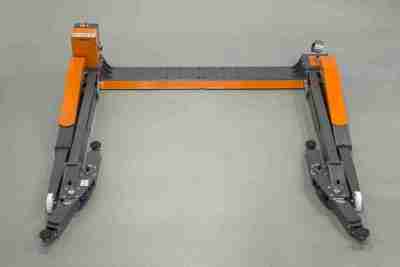

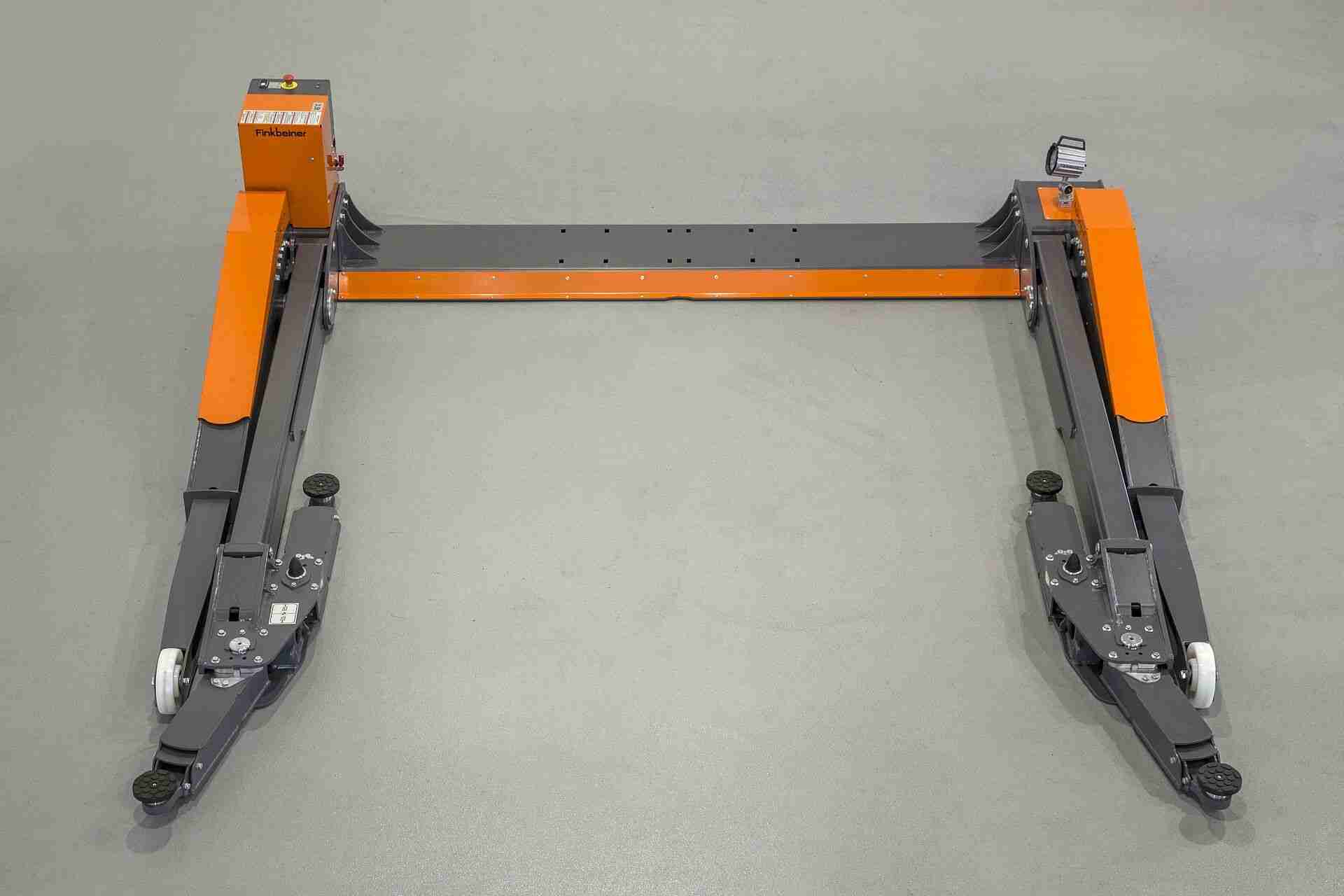

Mobile lift, capacity 3500 kg, battery driven, lifting height 194 cm, symmetric swivel arms, drive-in width 2300 mm, electro-hydraulic drive.

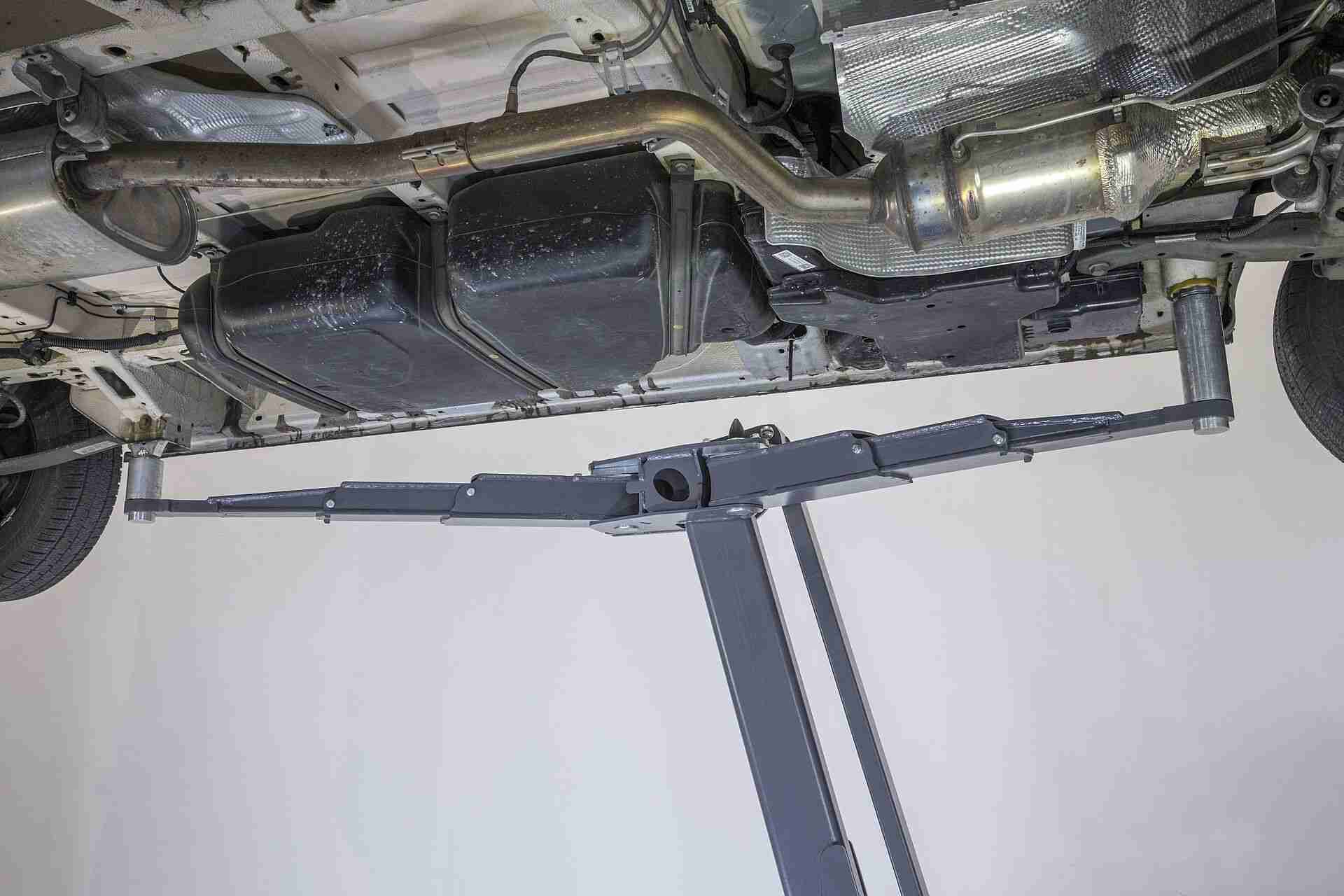

Please adhere to the lifting points prescribed by the vehicle manufacturer and check the suitable load supports, the dimensions and the swivelling range of the swivel arms.
Article no.
FHB3500-DC01
Load support
load support

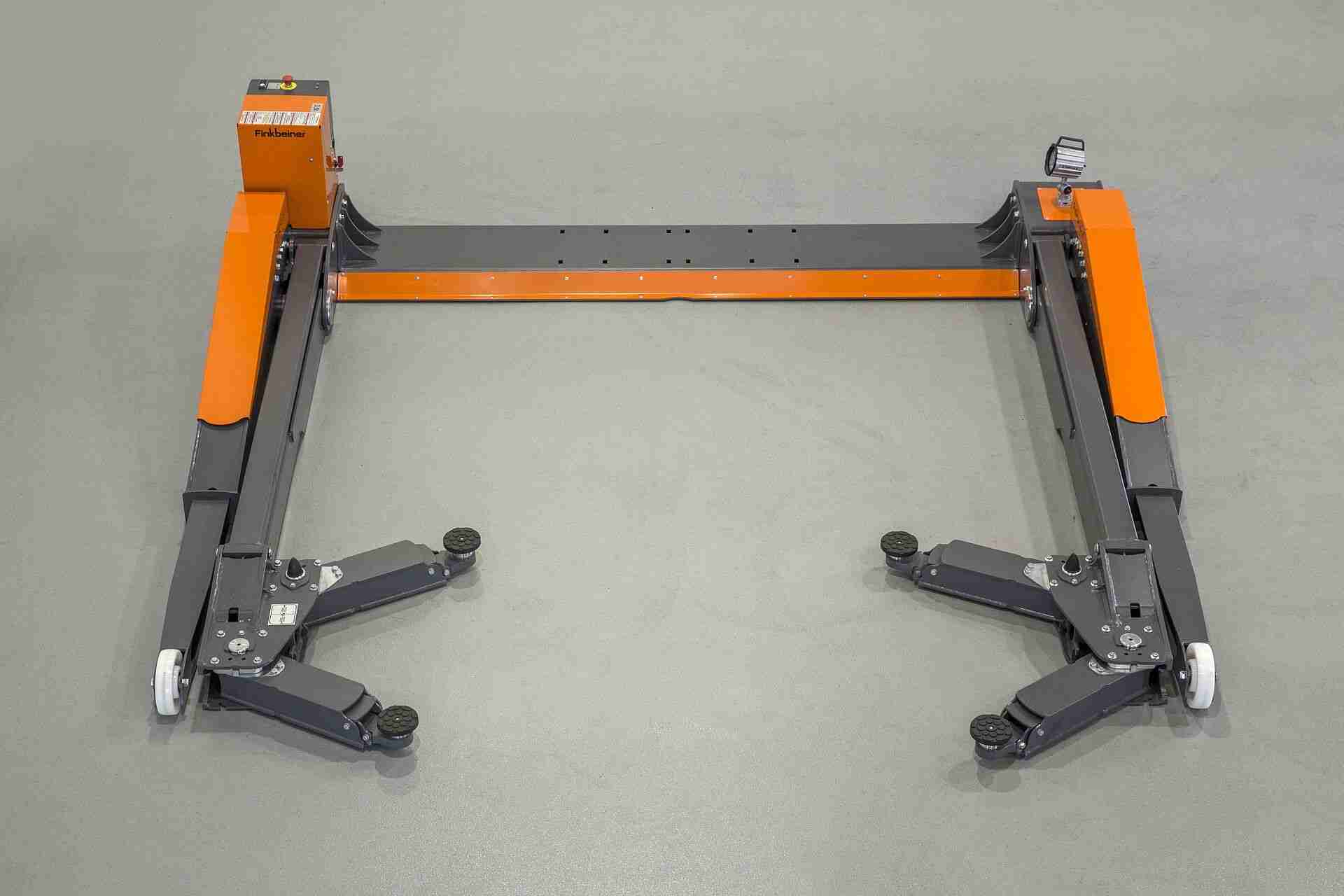

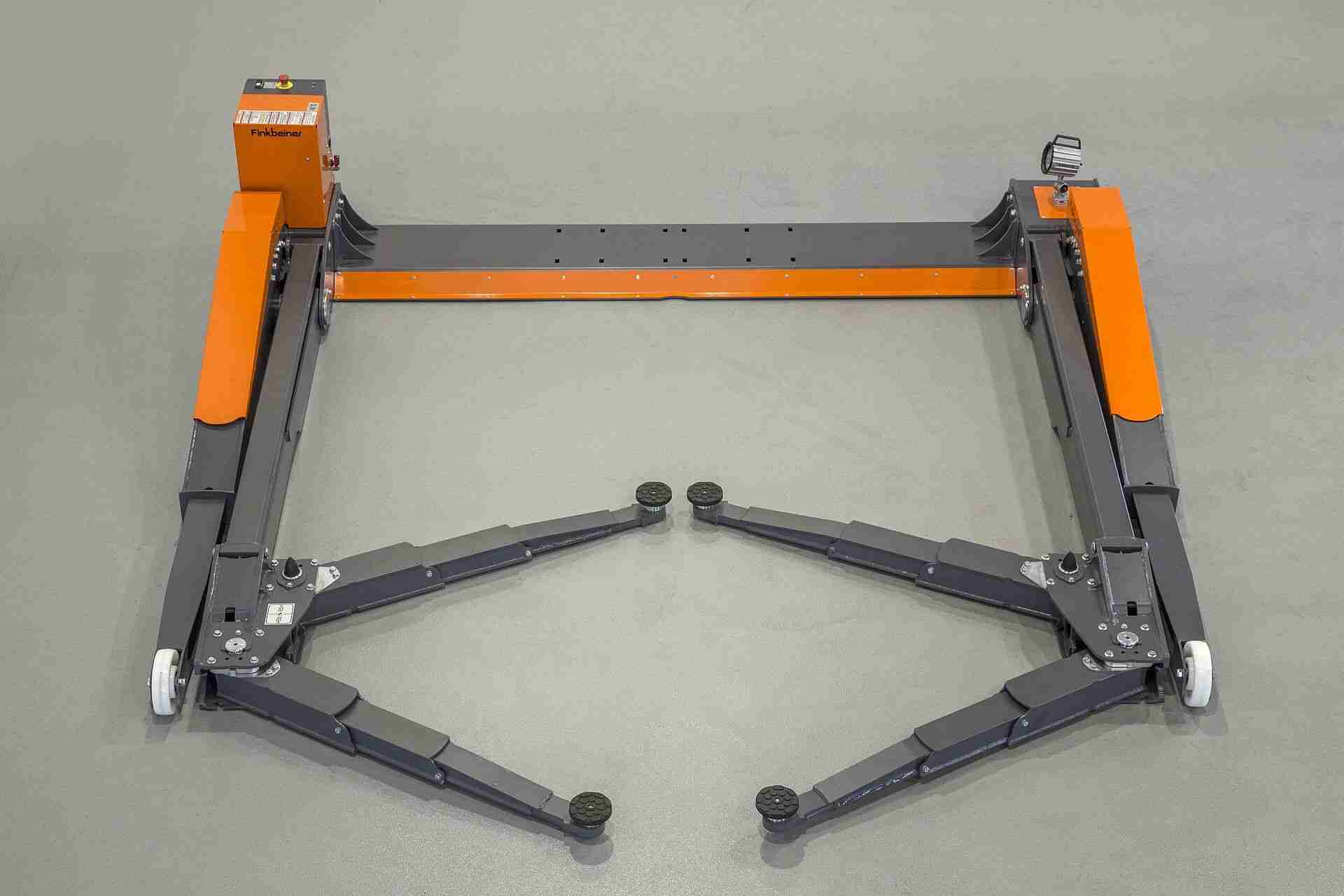

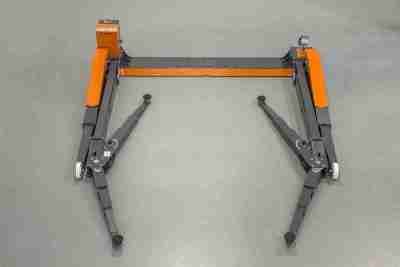

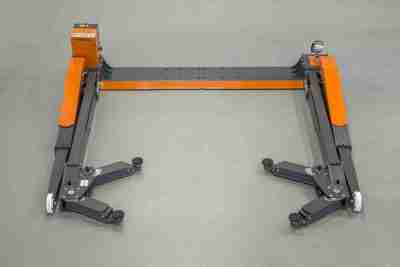

4 swivel arms, symmetric
capacity
3.5 t
length of swivel arm at front, minimum (mm)
560 mm
length of swivel arm at front, maximum (mm)
1300 mm
length of swivel arm at rear, minimum (mm)
560 mm
length of swivel arm at rear, maximum (mm)
1300 mm
distance between supports, maximum
2950 mm

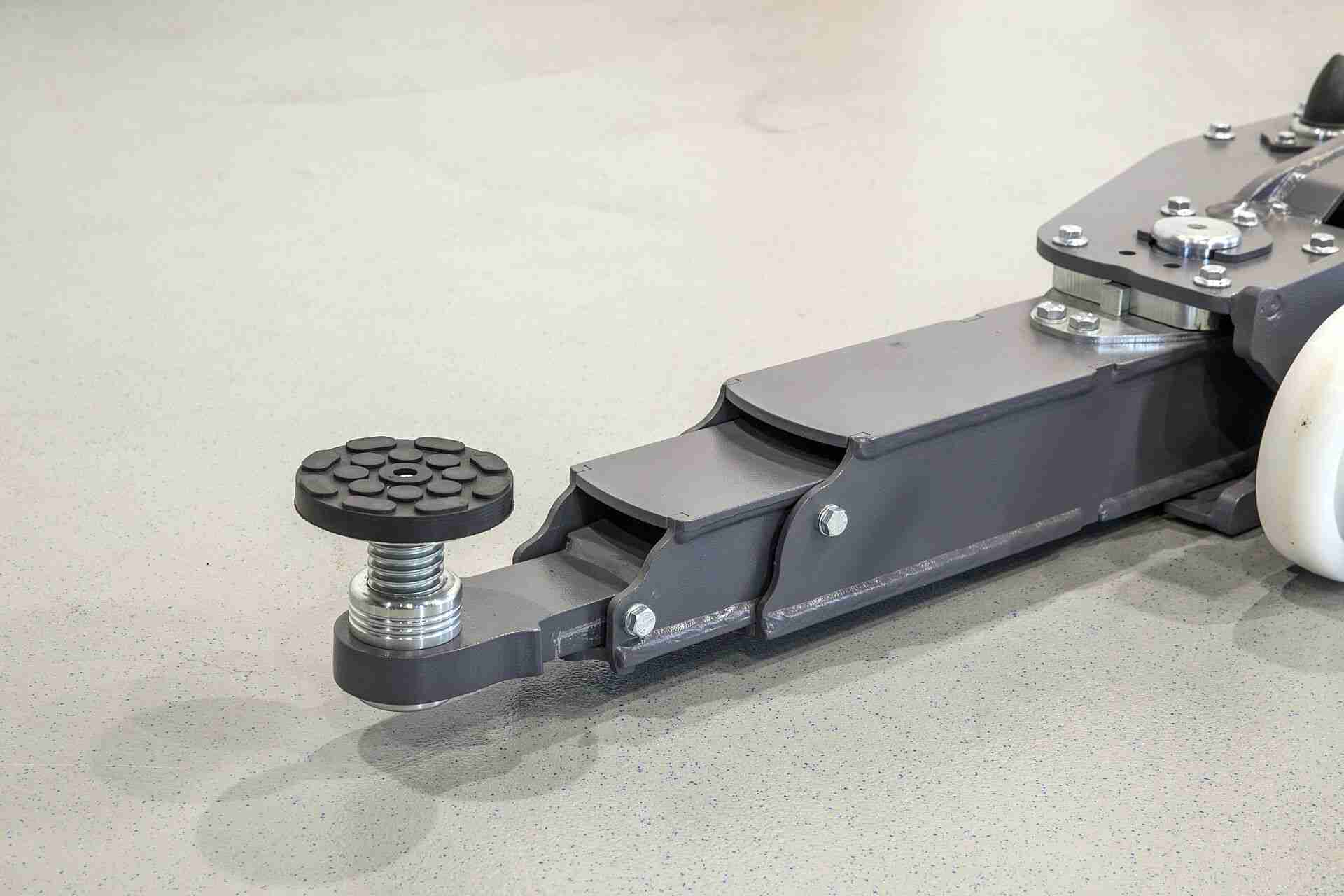

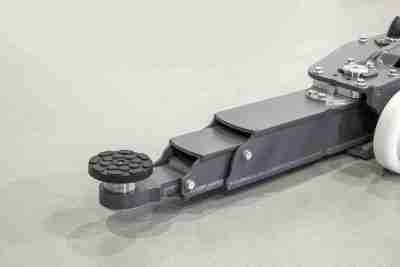

load pad Ø
120 mm
Lifting height
lifting stroke effective
1800 mm
lifting height
1940 mm
minimum support height (mm)
120 mm
height adjustment of load pad
40 mm
Speed
lifting time
40 sec.
lowering time (under load)
40 sec.
Drive
mode of drive
electro-hydraulic
motor
DC voltage
motor power (kW)
2.2 KW
Power supply
type of power supply
battery-powered
type of battery
deep cycle, maintenance-free
lift cycles at full load
20
battery capacity
80 Ah
total battery voltage
24 V
length of charging cable
1 m
charging concept
integrated charger
charging voltage
230 V
frequency of power supply
50 Hz
charging time
8 h
Operation

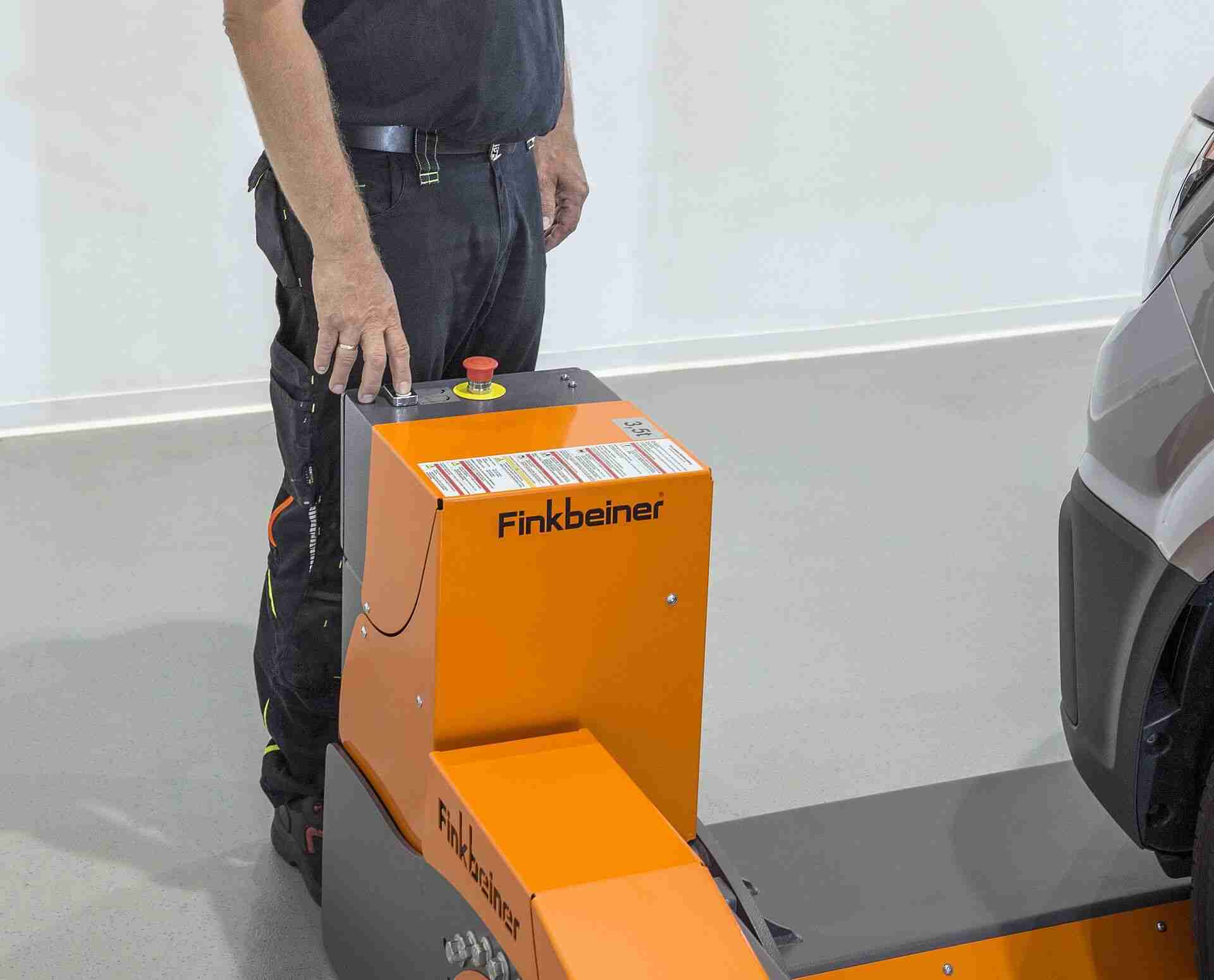

mode of operation
1 central control unit
control
electronic
Regularisation
synchronisation
master-slave cylinder system
Travelling device

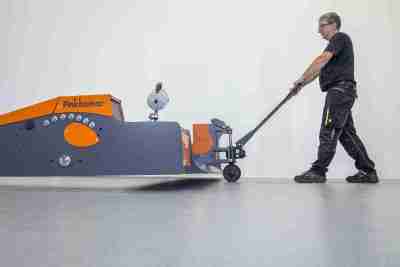

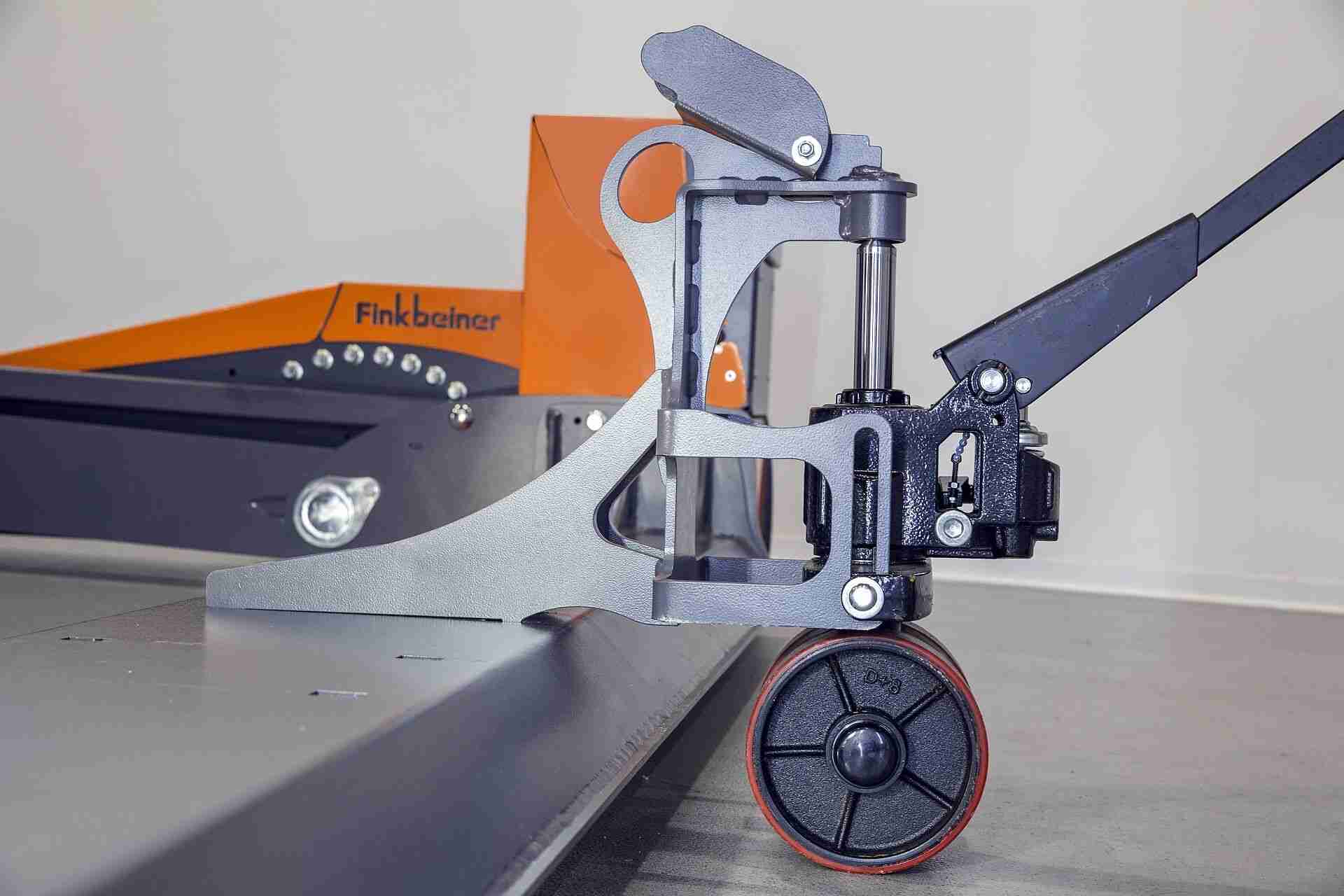

travelling device
2 front wheels, 1 detachable wheel handle at rear
ground clearance at front
20 mm
ground clearance at rear
90 mm
Load securing
load securing
hydraulic and mechanical
Dimensions
length
2960 mm
width
3350 mm
height
750 mm
drive-in width
2300 mm
Weight
1350 kg
Protection class
IP54
Surface treatment
type of surface treatment
powder coating
colour
orange RAL2004 / grey RAL7015
We aim to dispatch within 2-3 working days. Free delivery for Ireland orders over €100.
