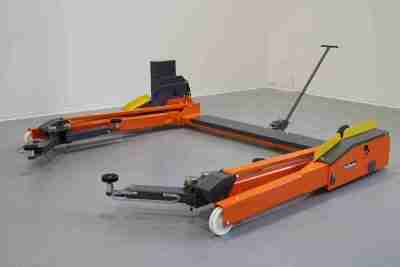

Mobile 2-Post Lift-FHB3000-04-SL-2300(56257A)
Call for Price

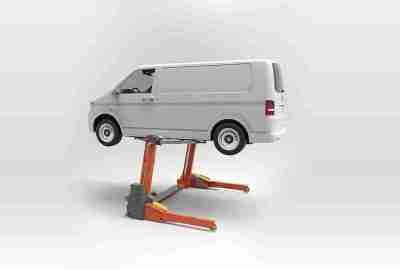

Portable lift, capacity 3000 kg, 400 V power supply, electro-hydraulic drive, asymmetric swivel arms, drive-in width 2300 mm, for cars, SUV, small vans
Please adhere to the lifting points prescribed by the vehicle manufacturer and check the suitable load supports, the dimensions and the swivelling range of the swivel arms.
Description
Description
| Article no. | FHB3000-04 | |
| Lifting unit | quantity of columns | 2 |

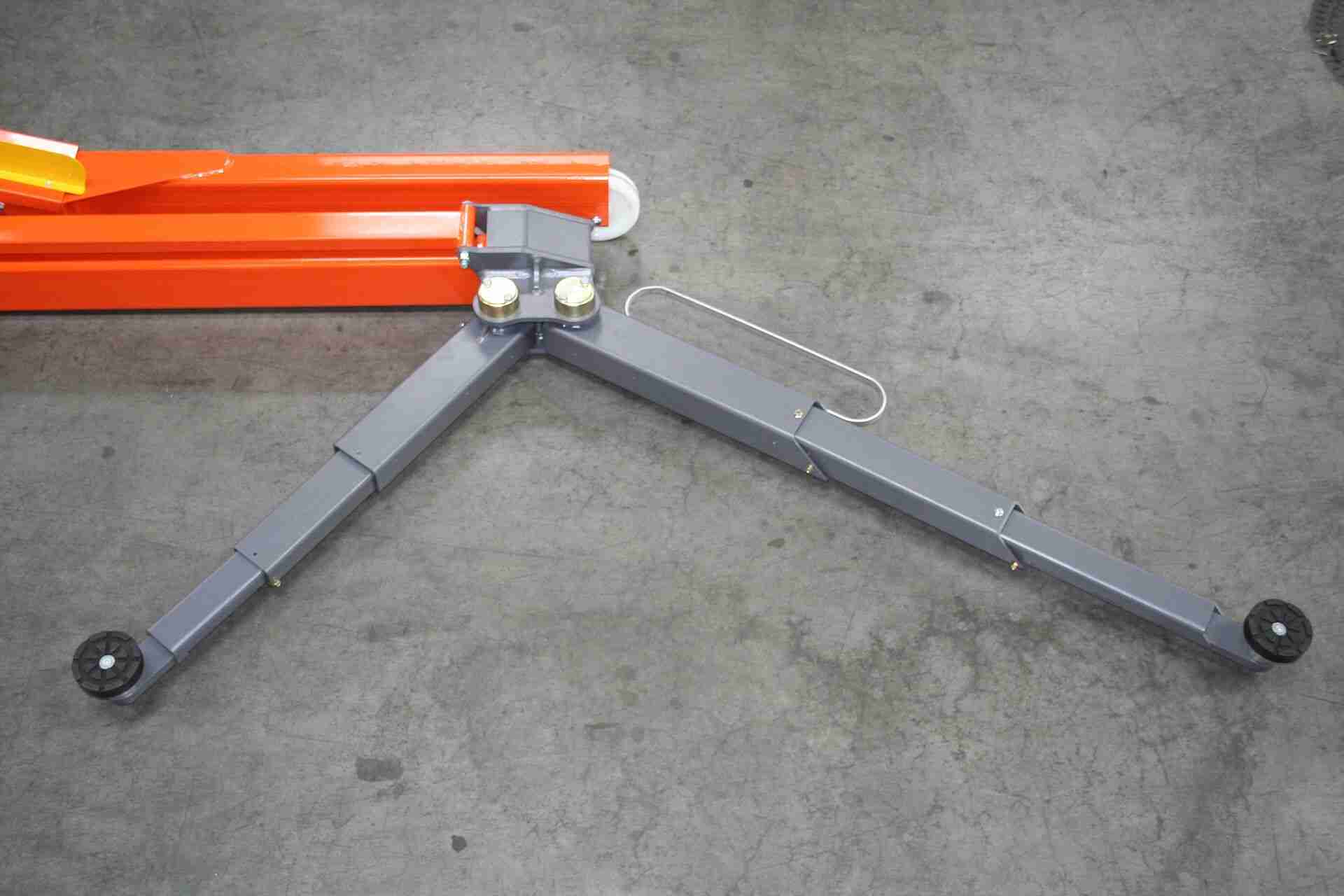

| Load support | load support | 4 swivel arms, asymmetric |
| capacity | 3 t | |
| length of swivel arm at front, minimum (mm) | 600 mm | |
| length of swivel arm at front, maximum (mm) | 1070 mm | |
| length of swivel arm at rear, minimum (mm) | 700 mm | |
| length of swivel arm at rear, maximum (mm) | 1550 mm | |
| distance between supports, maximum | 2780 mm | |
| load pad Ø | 120 mm | |

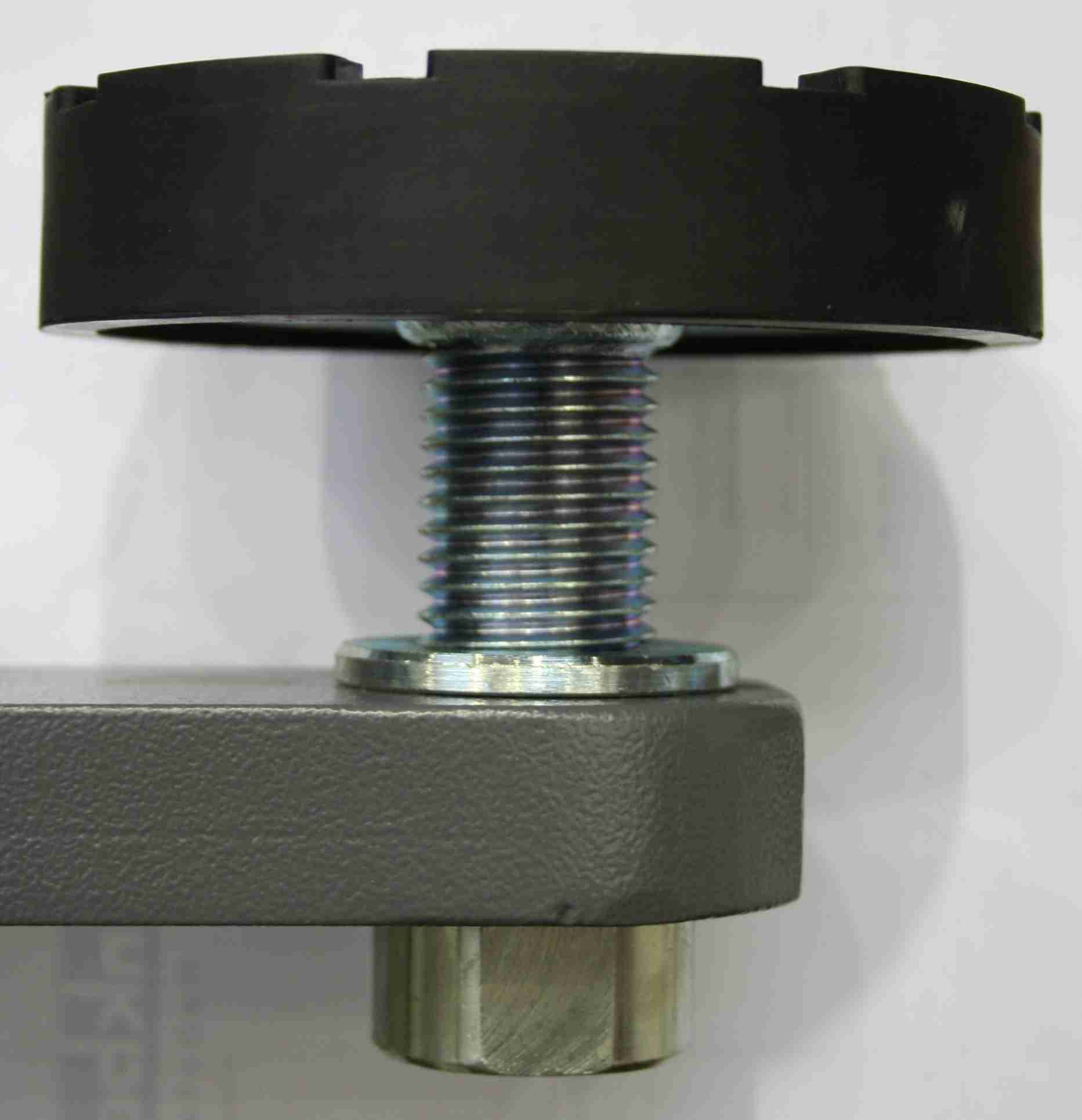

| Lifting height | height adjustment of load pad | 35 mm |
| lifting height / floor version | 1850 mm | |
| Speed | lifting time | 40 sec. |
| lowering time (under load) | 40 sec. | |
| Drive | mode of drive | electro-hydraulic |
| motor | AC voltage | |
| motor power (kW) | 2.2 KW | |
| Power supply | type of power supply | mains supply |
| electrical connection | 400V/3Ph+N+PE/50Hz | |
| fuse (Amps) | 16 A | |

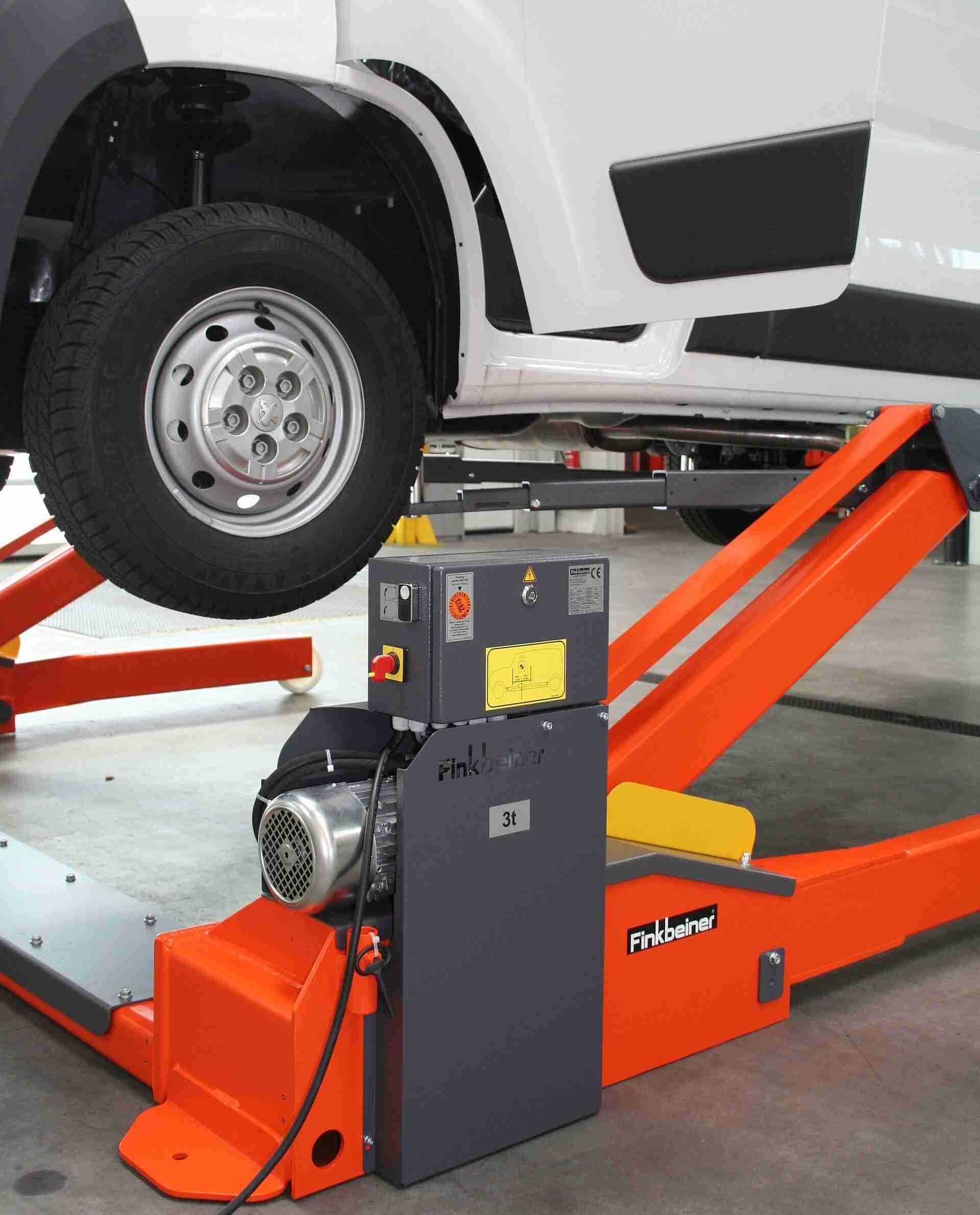

| Operation | mode of operation | 1 central control unit |
| control | electric | |
| Regularisation | synchronisation | master-slave cylinder system |

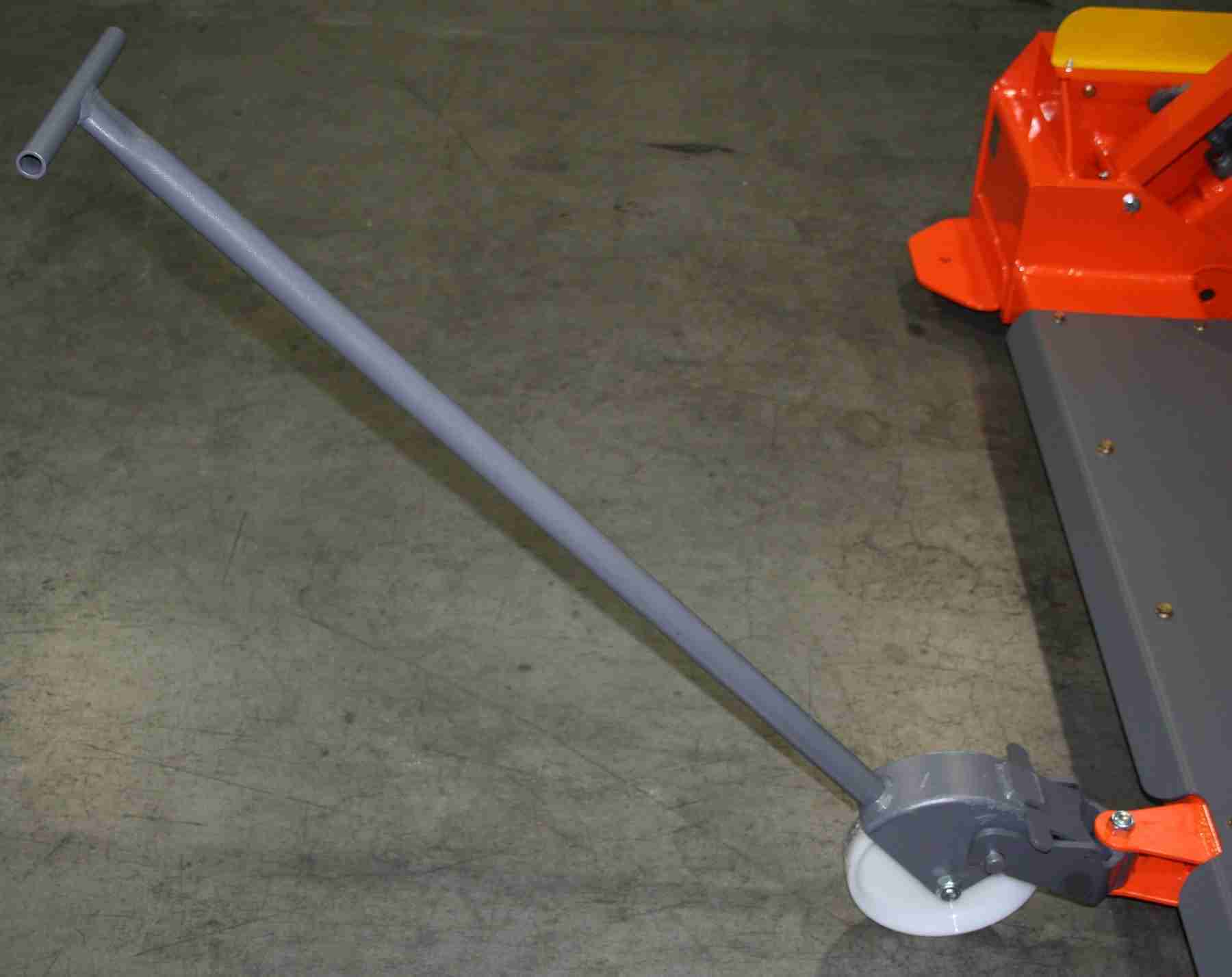

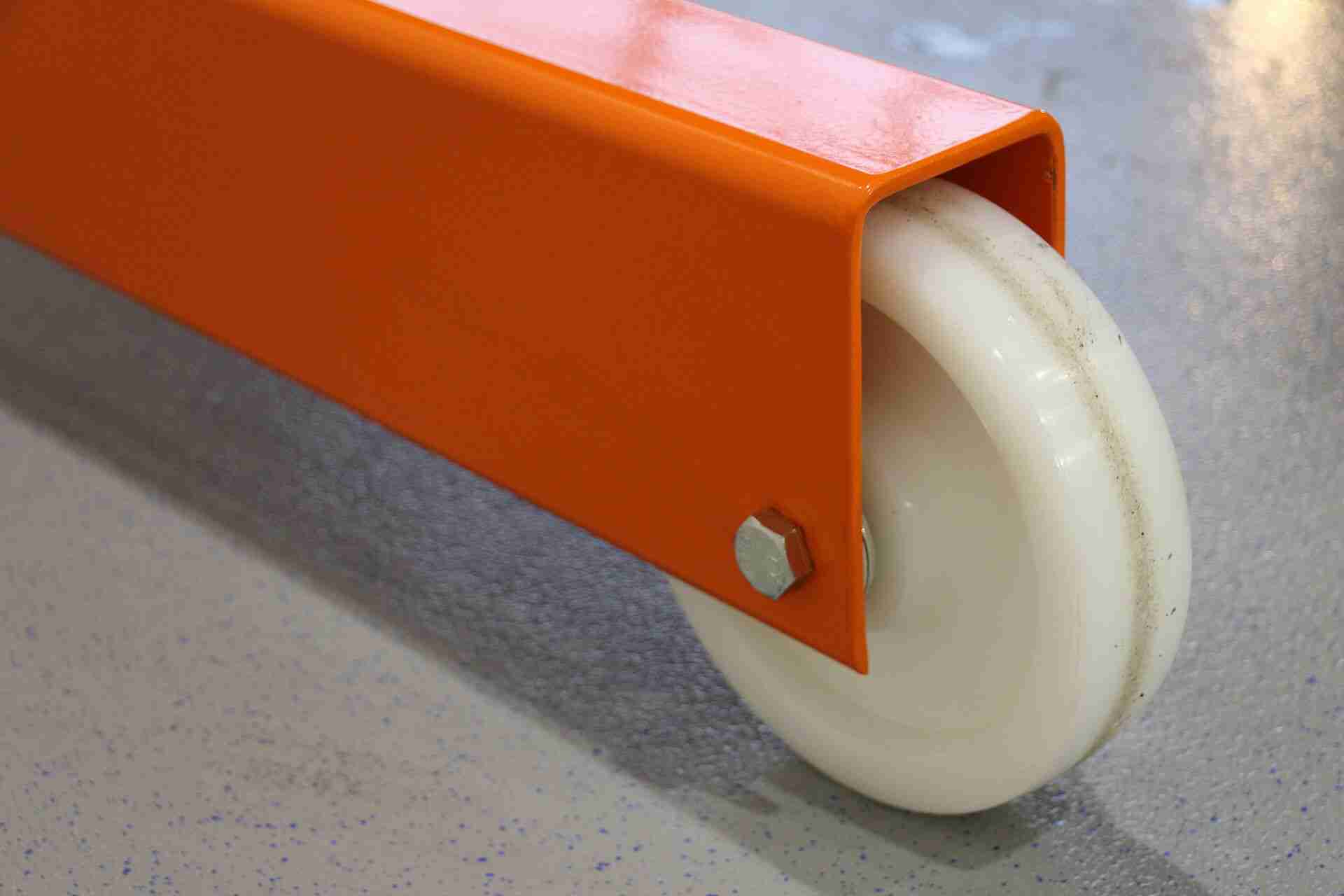

| Travelling device | travelling device | 2 front wheels, 1 detachable wheel handle at rear |
| Load securing | load securing | hydraulic and mechanical |
| Dimensions | length | 2350 mm |
| width | 3350 mm | |
| height | 790 mm | |
| drive-in width | 2300 mm | |
| Weight | 1100 kg | |
| Protection class | IP54 | |
| Surface treatment | type of surface treatment | powder coating |
| colour | orange RAL2004 / grey RAL7015 |
