Description
Description
Specifications
- Smooth running behaviour due to roller-bearing carriage
- Unique welded column design
- The cold-rolled spindle
- Strong internal arm locking system
- Safety system
- Electronic synchronisation
- Control unit
- Lifting pad versions
- Strong motor
- Door stop protection
Manufacturer
AUTOPSTENHOJ is a manufacturer and supplier of premium quality lifts and test equipment. Planning, consulting, assembly and technical support round off the AUTOPSTENHOJ range of services.
Description

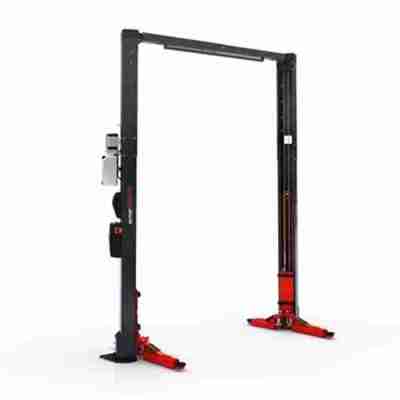

Posts:
- Asymmetric post installation, vehicles can be positioned far to the rear, for better door-opening angle
- Very stable bent posts
- Without base frame, therefore free drive-in situation
- One power pack with low power consumption
- Carriage with optimized sliding block bearing for low friction
- Double door-stop mounted on carriage
- Electrically operated safety ratchet system, no expensive compressed air required
- Pushbutton control unit with parking button and alarm signal
- Adjustable limit switch for top stop and CE-stop, as well as upper protection switch rail
- Mechanic synchronization via steel cables
- Post is height adjustable during installation
Arms:
- Universal lifting area from small passenger car up to VW T6 long wheel base with lifting pad type „F“
- Possibility of parallel parking of arms for easier and faster positioning of vehicles
- Arms can be opened more than 180° for better drive-in situation for lifts installed in 90° angle to the drive lane
- Low minimum height
Standard colours:
- Carriage and arms: RAL 3020 – red
- Posts: RAL 7016 – grey
Versions
- Available with different voltages
- Universal arm set for different cars
- DT = double telescopic arms
Options
- Set of expansion bolts
- Energy set with compressed air and socket-outlet
- Extra control unit for second post
- Large program of extra pads, depending on type of vehicle
Technical data
| Lifting capacity, up to | 4,000 kg |
| Stroke length | 1,900 mm |
| Working height | 1,990-2,013 mm |
| Lifting / lowering time | ~ 30 sec. |
| Voltage | 3×230/400V-50/60Hz-16A |
| Motor | 3.0 kW |
Arm superstructure
| Lifting pad included in the delivery | F: 90 – 113 mm |
| Total height post | 3995 + 225 mm |
| Drive-through width | 2,405 mm |
| Min. height | 90 mm |
| Width between posts | 2,740 mm |
| Total width – outer edges base plates | 3,500 mm |
| Arm length front, min. – max. | F: 600-1,245 mm |
| Arm length rear, min. – max. | F: 750-1,445 mm |
