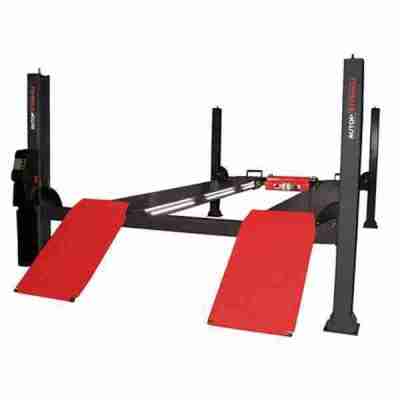

Major 7230

Call for Price

Electro-hydraulic 4-post lift with 7.2 t capacity

Categories: ,

Description

Description

Manufacturer

AUTOPSTENHOJ is a manufacturer and supplier of premium quality lifts and test equipment. Planning, consulting, assembly and technical support round off the AUTOPSTENHOJ range of services.

Description

  • Integrated eccentric brake system
  • Emergency stop valve
  • Obstruction system
  • Pneumatic parking system in height adjustable ratchets
  • Pump unit with immersed motor and control unit on rear left post
  • Pushbutton control unit with alarm signal
  • Hydraulic cylinder under left platform
  • Lifting and lowering by means of cables
  • Emergency lowering valve
  • One movable platform as standard
  • Platforms prepared for AUTOPSTENHOJ scissor jack

Standard colours:

  • Platforms & posts: grey RAL 7016, ramps: red RAL 3020

Versions

  • Available with different voltages
  • S = flush platforms
  • G = galvanized platforms
  • 60 = 6000 mm platforms
  • Drive-on ramps and stops for surface-mounting, alternatively drive-over ramps for recessed installation

Options

  • Set of expansion bolts
  • Extra control unit
  • LED lighting set
  • Set of two 385 mm ramp extensions
  • Set of two platform extensions (0.5 m)
  • Special colours available on request

Technical data

Lifting capacity, up to7,200 kg
Stroke length1,670 mm
Working height1,840 mm
Lifting / lowering time40/58 sec.
Pump unit3.0 kW
Voltage3×230/400V-50 Hz – 25/16 A

Platforms

Total length7,280 mm
Platform width – Measurements depend on platform length630 mm
Usable length of platform6,000 mm
Height2,235 mm
Wheel base, min. – max.variable
Distance between platforms725 – 1,210 mm
Drive-on height170 mm
Width between posts3,000 mm
Total width – outer edges base plates3,432 mm

“WE STAND OVER OUR LIFTS, SO YOU CAN STAND UNDER THEM”
