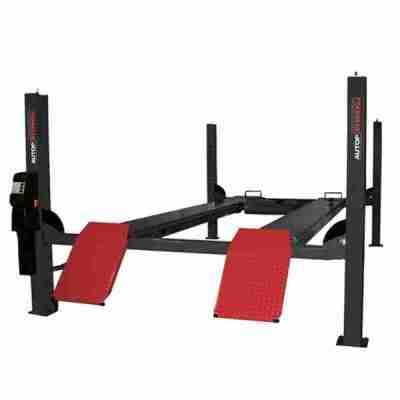

Major 4030

Call for Price

Electro-hydraulic 4-post lift with 4 t capacity

Category:

Description

Manufacturer

AUTOPSTENHOJ is a manufacturer and supplier of premium quality lifts and test equipment. Planning, consulting, assembly and technical support round off the AUTOPSTENHOJ range of services.

Description

  • Integrated eccentric brake system
  • Emergency stop valve
  • Obstruction system
  • Pneumatic parking system in height adjustable ratchets
  • Pump unit with immersed motor and control unit on rear left post
  • Pushbutton control unit with alarm signal
  • Hydraulic cylinder under left platform
  • Lifting and lowering by means of cables
  • Emergency lowering valve
  • One movable platform as standard
  • Platforms prepared for AUTOPSTENHOJ scissor jack


Standard colours:
Platforms & posts: grey RAL 7016, ramps: red RAL 3020

Versions

Available with different voltages

  • S = flush platforms
  • WL = with front recesses for turn tables and rear side slip plates, center cover plate between recesses and side slip plates
  • G = galvanized platforms
  • 42 = 4200 mm platforms
  • 47 = 4700 mm platforms
  • 51 = 5100 mm platforms
  • Drive-on ramps and stops for surface-mounting, alternatively drive-over ramps for recessed installation

Inspection lifts:
As standard equipped with re-inforced posts and larger cable diameter for intensive usage in inspection centres. As standard delivered with:
P = play detector (pneumatically operated for both lateral and rotational movement, for axle load up to 3 t), operation with wireless hand lamp
Option:
D = double pump unit for quicker lifting time. Control unit on front left post

MOT / ATL lifts:
Worldwide accepted inspection lifts which have been specified and constructed according to UK MOT and ATL (automated test lanes VOSA) requirements.
Both MOT / ATL lifts are as standard delivered with front recesses with turntables and extra control unit for operation from front right post; ATL lifts furthermore equipped with re-inforced posts and larger cable diameter and:
P = play detector (pneumatically operated for both lateral and rotational movement, for axle load up to 3 t), operation with wireless hand lamp

Options

  • Set of expansion bolts
  • Extra control unit
  • LED lighting set
  • Set of two cover plates for recesses
  • Set of two 385 mm ramp extensions
  • Set of two platform extensions (0.5 m)

Special colours available on request

Technical data

Lifting capacity, up to4,000 kg
Stroke length1,670 mm
Working height1,830 mm
Lifting / lowering time24 / 26 sec.
Pump unit3.0 kW
Voltage3×230/400V-50 Hz – 25/16 A

Platforms

Total length5,560/ 5,980 mm
Platform width – Measurements depend on platform length550 mm
Usable length of platform4,680/ 5,100 mm
Height2,233 mm
Wheel base, min. – max.variable
Distance between platforms805 – 1,285 mm
Drive-on height140/160 mm
Width between posts3,000 mm
Total width – outer edges base plates3,422 mm

Major 4030 Inspection

Lifting capacity, up to4,000 kg
Stroke length1,670 mm
Working height1,810 mm
Lifting / lowering timeStandard: 24/26 sec.
D:16/26 sec.
Pump unitStandard: 3 kW
D: 2 x 3 kW
Voltage3×230/400V – 50 Hz – 25/16 A
