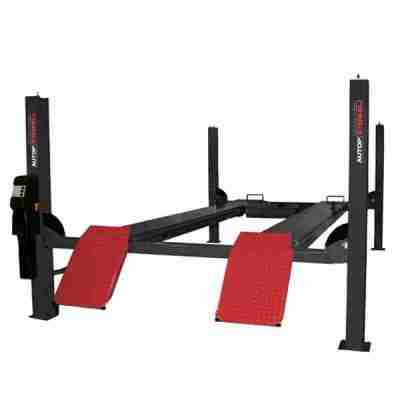

Major 4026(1157C2)

BROCHURE

SKETCHES

CALL BACK

ENQUIRY

/*! elementor – v3.5.6 – 28-02-2022 */.elementor-heading-title{padding:0;margin:0;line-height:1}.elementor-widget-heading .elementor-heading-title[class*=elementor-size-]>a{color:inherit;font-size:inherit;line-height:inherit}.elementor-widget-heading .elementor-heading-title.elementor-size-small{font-size:15px}.elementor-widget-heading .elementor-heading-title.elementor-size-medium{font-size:19px}.elementor-widget-heading .elementor-heading-title.elementor-size-large{font-size:29px}.elementor-widget-heading .elementor-heading-title.elementor-size-xl{font-size:39px}.elementor-widget-heading .elementor-heading-title.elementor-size-xxl{font-size:59px}
Manufacturer
/*! elementor – v3.5.6 – 28-02-2022 */.elementor-widget-image{text-align:center}.elementor-widget-image a{display:inline-block}.elementor-widget-image a img[src$=”.svg”]{width:48px}.elementor-widget-image img{vertical-align:middle;display:inline-block}

AUTOPSTENHOJ is a manufacturer and supplier of premium quality lifts and test equipment. Planning, consulting, assembly and technical support round off the AUTOPSTENHOJ range of services.

More Information

Description

Integrated eccentric brake system
Emergency stop valve
Obstruction system
Pneumatic parking system in height adjustable ratchets
Pump unit with immersed motor and control unit on rear left post
Pushbutton control unit with alarm signal
Hydraulic cylinder under left platform
Lifting and lowering by means of cables
Emergency lowering valve

One movable platform as standard

Platforms prepared for AUTOPSTENHOJ scissor jack

Standard colours:

Platforms & posts: grey RAL 7016, ramps: red RAL 3020

Versions

Available with different voltages
S = flush platforms
W = with front recesses for turn tables and rear side slip plates
G = galvanized platforms
42 = 4200 mm platforms
47 = 4700 mm platforms
51 = 5100 mm platforms
Drive-on ramps and stops for surface-mounting, alternatively drive-over ramps for recessed installation

Inspection lifts:
As standard equipped with re-inforced posts and larger cable diameter for intensive usage in inspection centres.
As standard delivered with:
P = play detector (pneumatically operated for both lateral and rotational movement, for axle load up to 3 t), operation with wireless hand lamp
Option:
D = double pump unit for quicker lifting time. Control unit on front left post
MOT / ATL lifts:
Worldwide accepted inspection lifts which have been specified and constructed according to UK MOT and ATL (automated test lanes VOSA) requirements.
Both MOT / ATL lifts are as standard delivered with front recesses with turntables and extra control unit for operation from front right post; ATL lifts furthermore equipped with re-inforced posts and larger cable diameter and:
P = play detector (pneumatically operated for both lateral and rotational movement, for axle load up to 3 t), operation with wireless hand lamp
Options

Set of expansion bolts
Extra control unit
LED lighting set
Set of two cover plates for recesses
Set of two 385 mm ramp extensions
Set of two platform extensions (0.5 m)
Special colours available on request

AUTOPSTENHOJ is a manufacturer and supplier of premium quality lifts and test equipment. Planning, consulting, assembly and tea
Technical data

Lifting capacity, up to
4,000 kg

Stroke length
1,670 mm

Working height
1,810 mm

Lifting / lowering time
24 / 26 sec.

Pump unit
3.0 kW

Voltage
3×230/400V-50 Hz – 25/16 A

Platforms

Total length
5,060/ 5,560 mm

Platform width – Measurements depend on platform length
500 mm

Usable length of platform
4,180/ 4,680 mm

Height
2,233 mm

Wheel base, min. – max.
variable

Distance between platforms
740-1,030 mm

Drive-on height
140/160 mm

Width between posts
2,600 mm

Total width – outer edges base plates
3,022 mm

Major 4026
