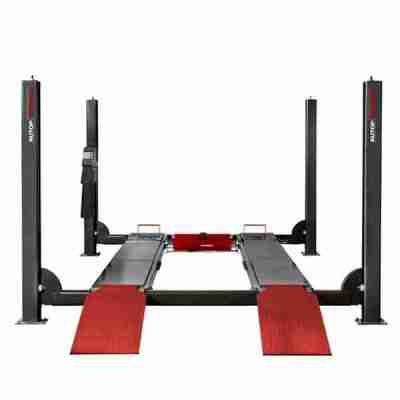

Major 2.0 4030

Call for Price

Electro-hydraulic 4-post lift, 4 t capacity

Category:

Description

Description

Manufacturer

AUTOPSTENHOJ is a manufacturer and supplier of premium quality lifts and test equipment. Planning, consulting, assembly and technical support round off the AUTOPSTENHOJ range of services.

Description

Posts:

  • Integrated eccentric brake system
  • Emergency stop valve
  • Obstruction system
  • Pneumatic parking system in height adjustable ratchets
  • Pump unit with immersed motor and control unit on front left post
  • Pushbutton control unit with alarm signal
  • Hydraulic cylinder under left platform
  • Lifting and lowering by means of cables
  • Emergency lowering valve


Platforms:

  • One movable platform as standard
  • Platforms prepared for AUTOPSTENHOJ scissor jack


Standard colours:

  • Platforms & posts: RAL 7016 – grey
  • Ramps: RAL 3020 – red

Versions

Available with different voltages

  • Drive-on ramps and stops for surfacemounting,
  • alternatively drive-over ramps for recessed installation
  • S = flush platforms
  • WL = with adjustable front recesses for turn tables and adjustable rear side slip plates supported by balls, center cover plate between recesses and side slip plates
  • G = galvanized platforms
  • 48 = 4,800 mm platforms
  • 51 = 5,100 mm platforms

Options

  • Set of expansion bolts
  • Extra control unit
  • LED-lighting set
  • Set of two 385 mm ramp extensions
  • Set of two platform extensions (0.5 m)
  • Pneumatic lock cylinder kit for slip plates


Special colours available on request!

Technical data

Lifting capacity, up to4,000 kg
Stroke length1,670 mm
Working height1,860 mm
Lifting / lowering time24/26 sec.
Pump unit3.0 kW
Voltage3×230/400V-50 Hz – 25/16 A

Platforms

Total length51: 5,983 mm
Platform width – Measurements depend on platform length550 mm
Usable length of platform51: 5,100 mm
Total height2235 mm
Wheel base, min. – max.51S: max. 4,600 mm
51 WL: min. 2,100 mm, max 4,100 mm
Distance between platforms805 – 1,285 mm
Drive-on height190 mm
Width between posts3,000 mm
Total width – outer edges base plates3,432 mm
